Description

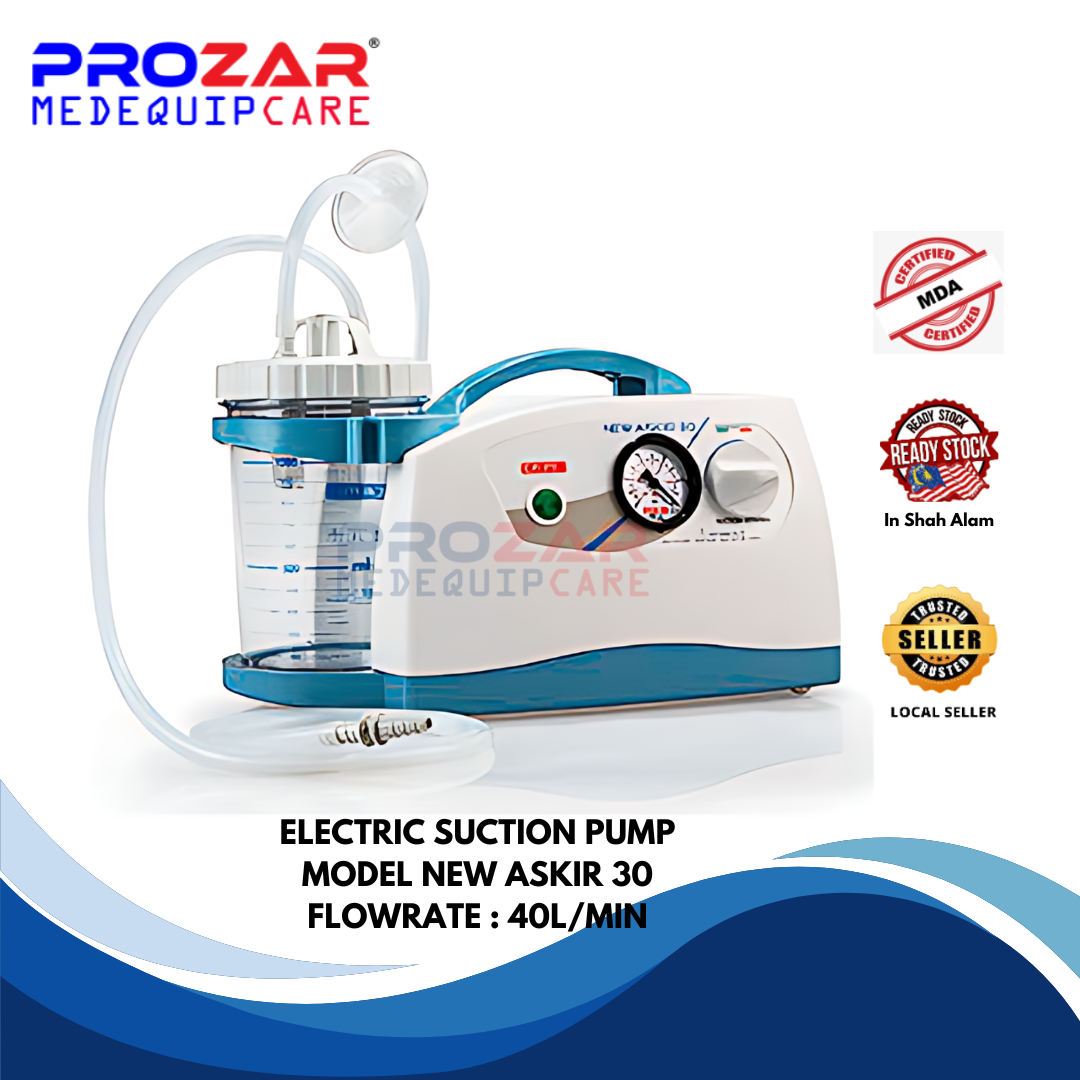

| NEW ASKIR 30 is suitable for nasal, oral and endotracheal aspiration of bodily fluids (mucus or catarrh) from adults and childre. Indicated for tracheotomized patients, surgical applications and post-operative therapy NEW ASKIR 30 finds application in out-patient and in-patient care, elderly care, in private care and at professional level due to its powerful suction capacity of 40 l/min.
The newly-designed ergonimic handle ensures a comfortable and secure grip. |
||
| Accessories Included : | ||
| – | Liquid Collection Jar with overflow valve system (different options, see below) | |
| – | Silicone Tubes 6x10mm (autoclavable) – Patient Tube length 140cm | |
| – | Conical Connector 8-9-10mm | |
| – | Antibacterial Hydrophobic Filter (single-patient) | |
| – | CH20 Canula | |
| – | Power Cord with Schuko plug | |
| Options : | ||
| – | Stand on 5 Castors 50mm with Brakes (antistatic upon request) REF 27730 |
|
| – | Carrying Bag (for 1000ml jar) SP 0207/02 | |
| – | Carrying Bag (for 2000ml jar) SP 0207 | |
| – | Vacuum regulator footswitch / | |
| – | Wall Mount 27736 | |
| Technical Features : | ||
| – | Motor Oiless and maintenance-free piston pump |
|
| – | Power Feeding 220-230V / 50-60Hz or 110-127V / 60Hz |
|
| – | ISO 10079-1 Classification HIGH VACUUM/ HIGH FLOW |
|
| – | IP Code IP21 |
|
| – | Max Vacuum (adjustable) -0.80 bar -80 kPa -600 mmHg |
|
| – | Max free air flow rate 40 l/m |
|
| – | Noise Level 60,5 dBA |
|
| – | Duty cycle Non-stop operation |
|
| – | Weight Kg 4.15 (unit packed with all accessories) |
|
| – | Size cm 35 x 18 x 21 |
|
| – | Years of Warranty 2 |
|
| – | Shipping carton 3 |
|
| – | Place of Manufacturing Italy |
|
